The Powerhouse of Your Multi-Tire Air System

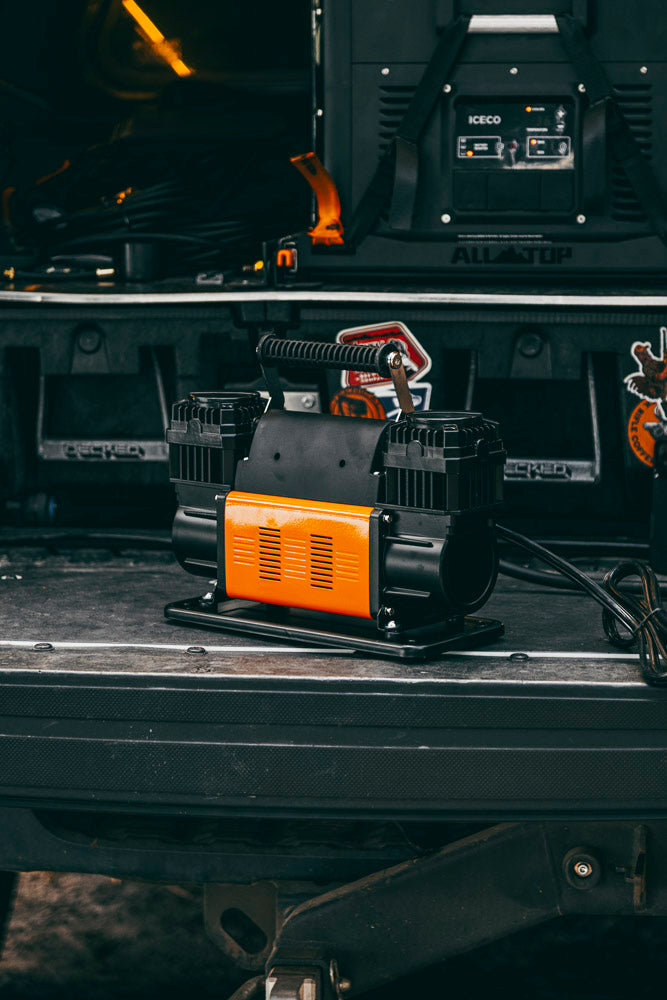

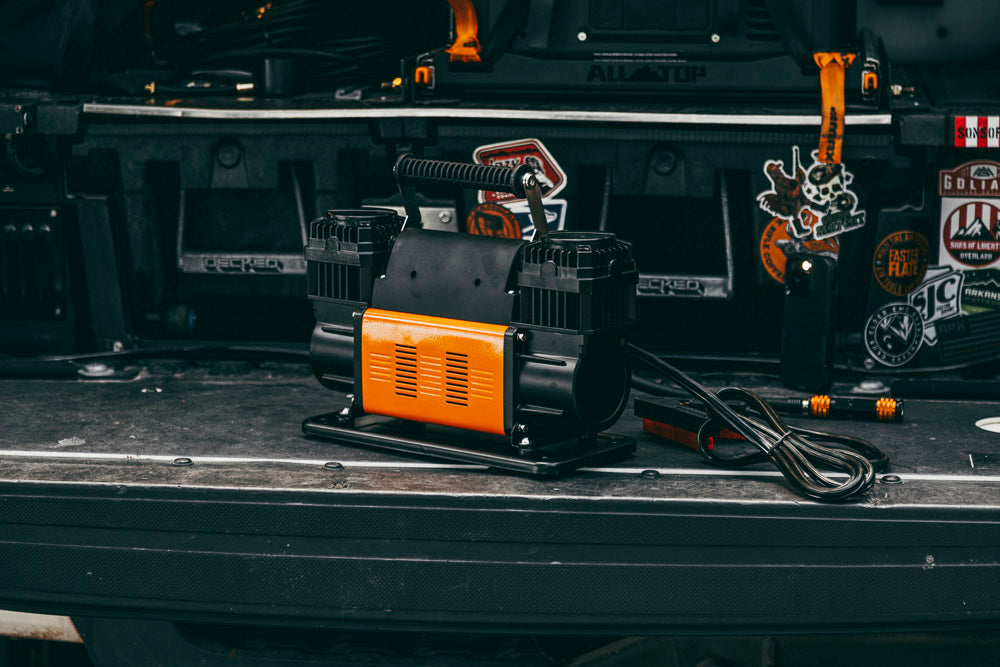

The FasterFlate Dual-Cylinder Compressor is the ultimate upgrade for overlanders and campers who value their time on the trail. While standard compressors can leave you waiting, this unit is specifically designed to provide the high-volume output necessary to drive our core FasterFlate multi-tire hose systems.

Performance Specs & Technical Data

Airflow: Delivers approximately 10.6 CFM (300 L/min) for rapid inflation.

Pressure: Rated up to 150 PSI—ideal for seating beads or handling the high-pressure requirements of heavy-duty trucks and trailers.

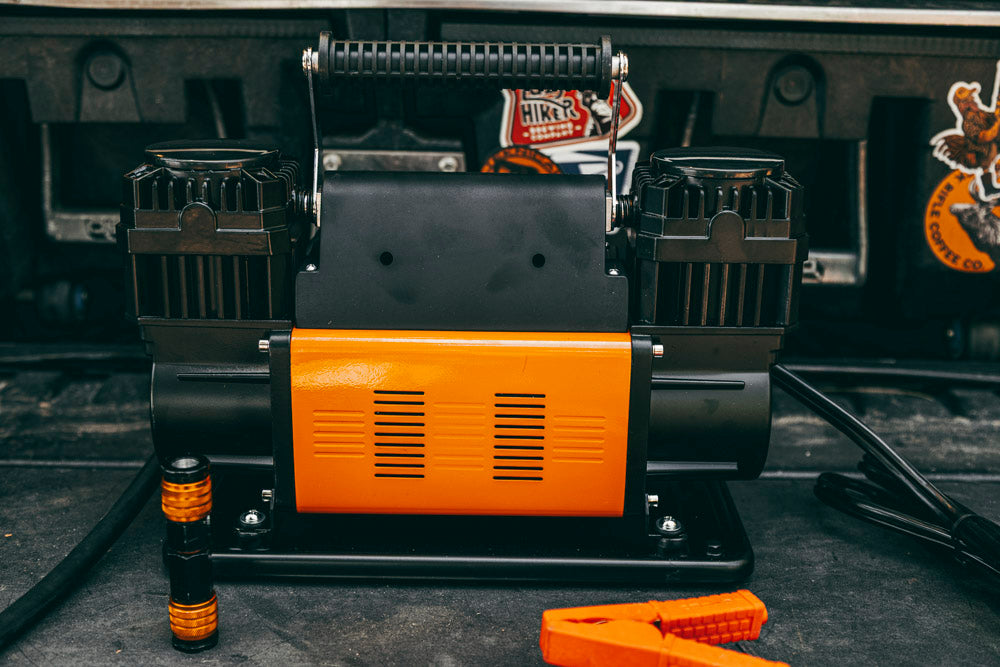

Dual-Cylinder Power: Driven by a 1.08 HP (800W) motor featuring dual 2.36" (60mm) bores.

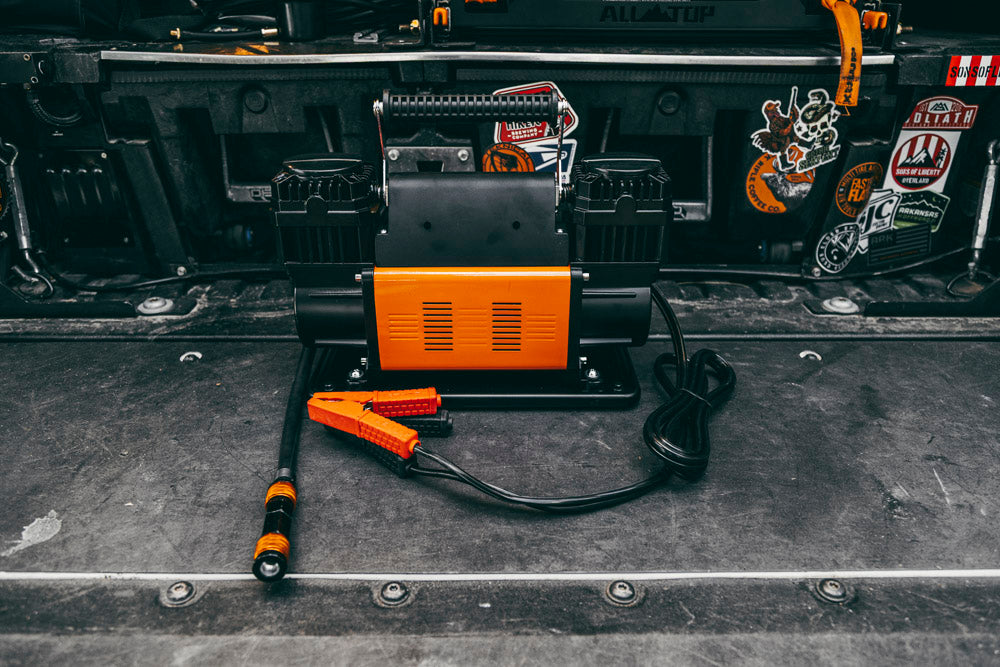

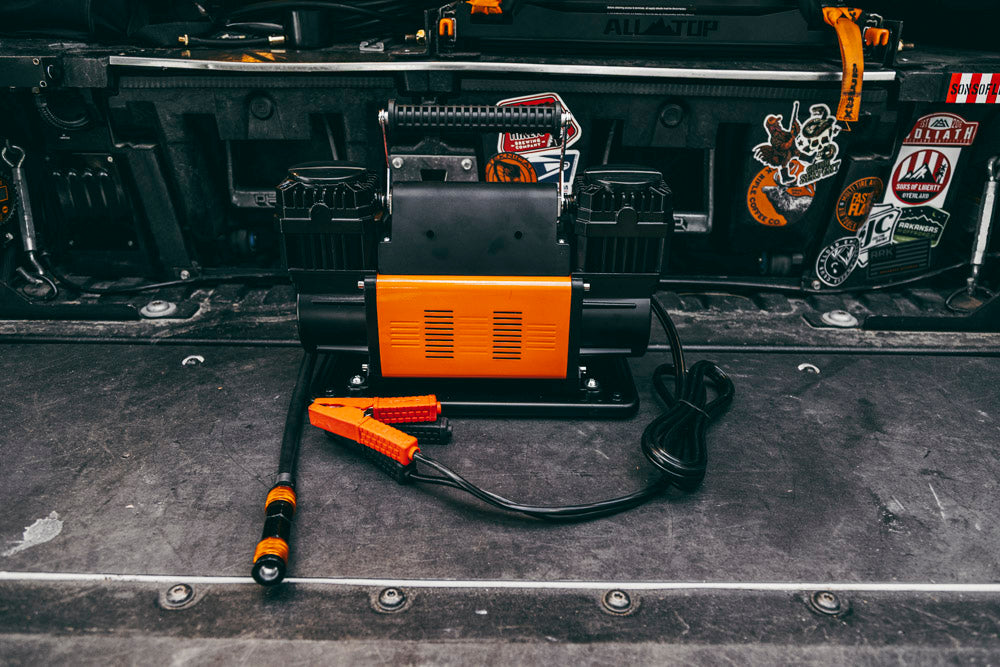

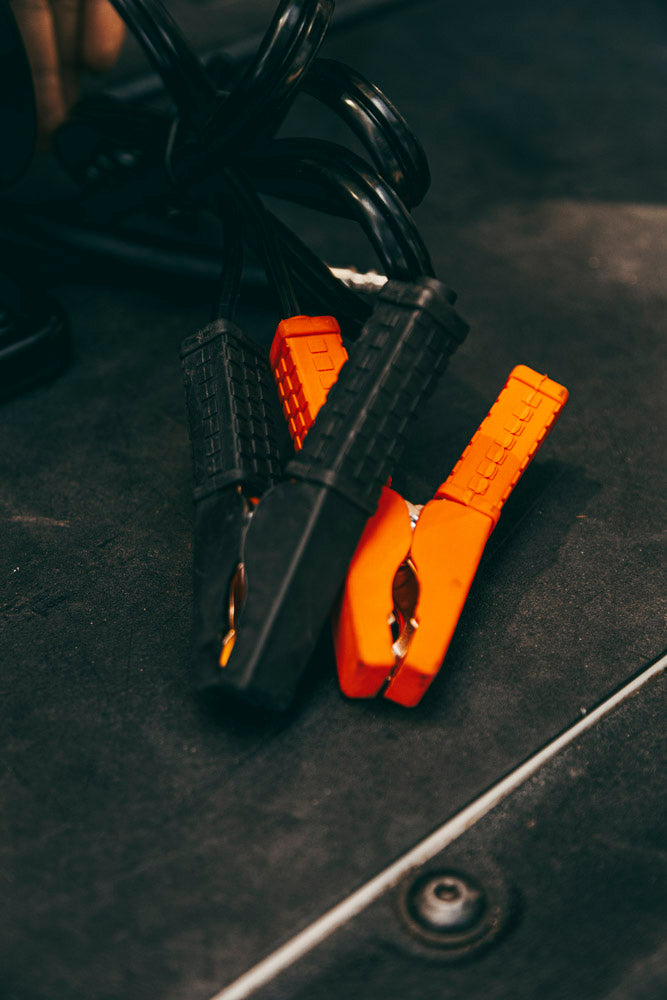

Current: 90A rated current (requires direct-to-battery connection via the included 6.5ft brass clamp cord).

Dimensions: 14.37" x 5.9" x 8.94"—compact enough for vehicle storage or portable use.

Integration

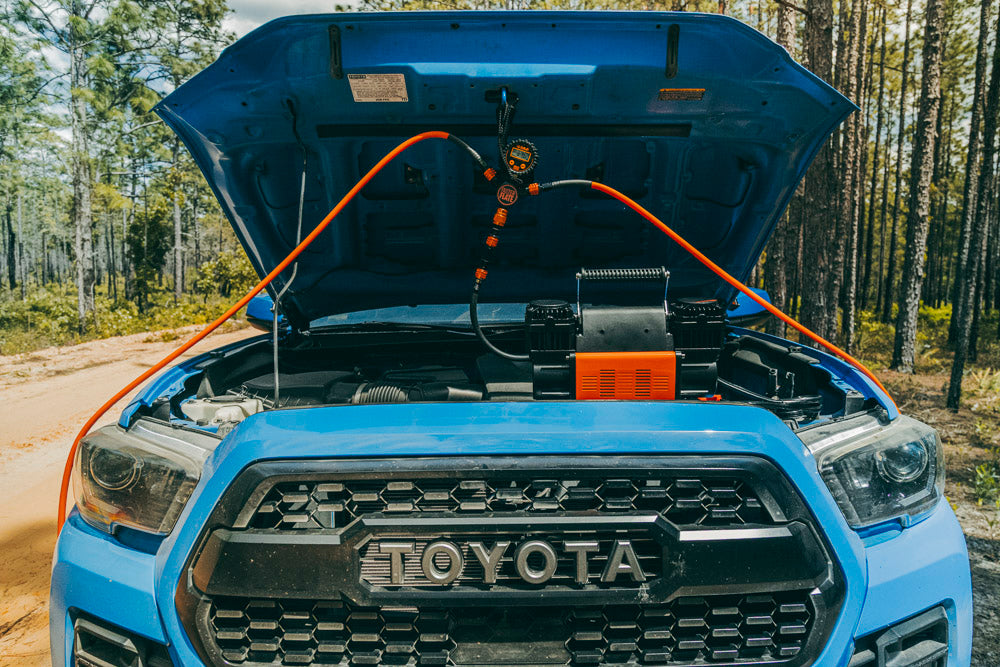

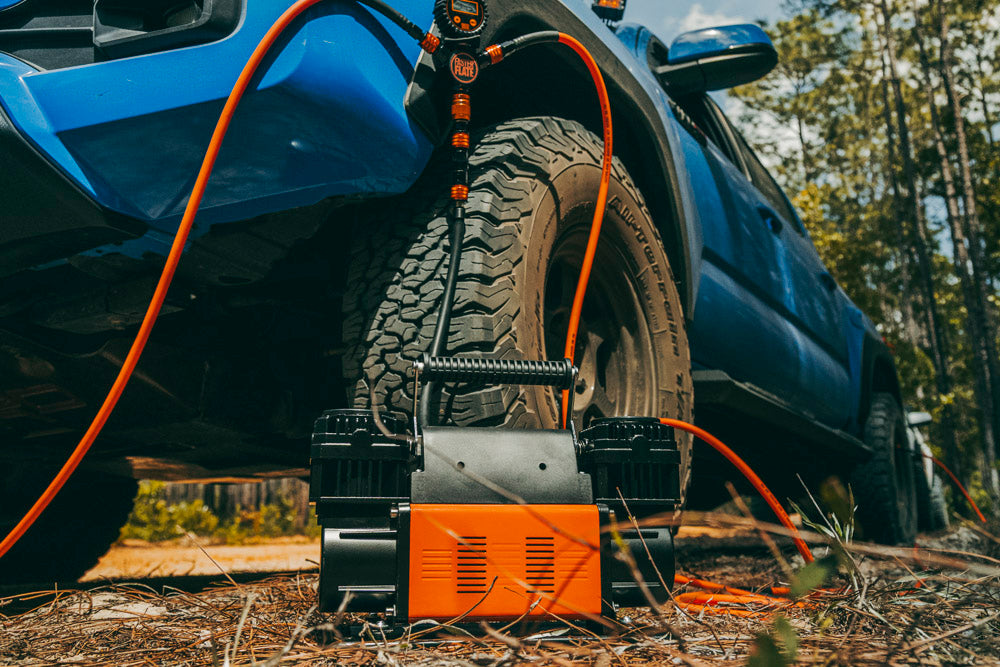

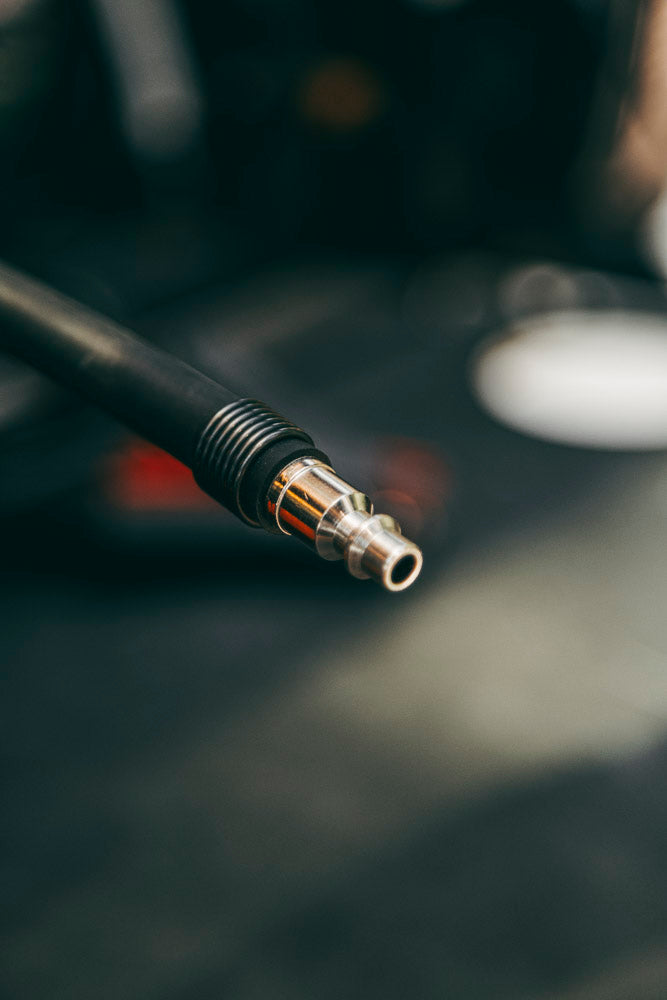

The compressor comes standard with a Male American Universal Quick-Connect fitting. To make things as easy as possible, we include a Female-to-Female Universal Adapter with every unit to ensure a "plug-and-play" experience. This makes the compressor instantly compatible with your FasterFlate multi-tire system right out of the box.

Note: This product is the standalone compressor unit. It does not include a FasterFlate Multi-Tire Air System, which must be purchased separately.

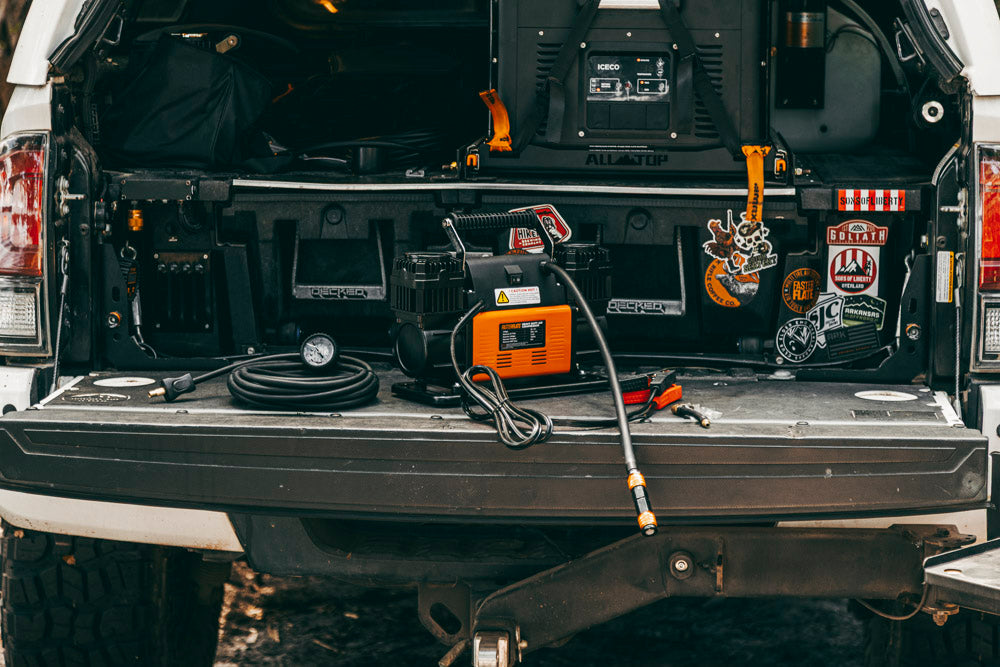

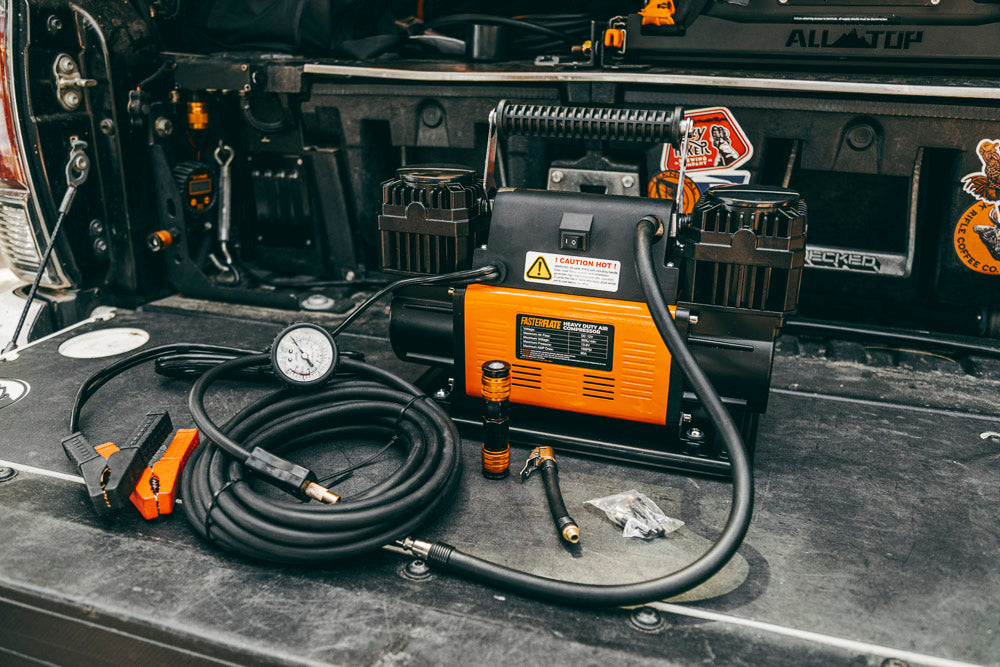

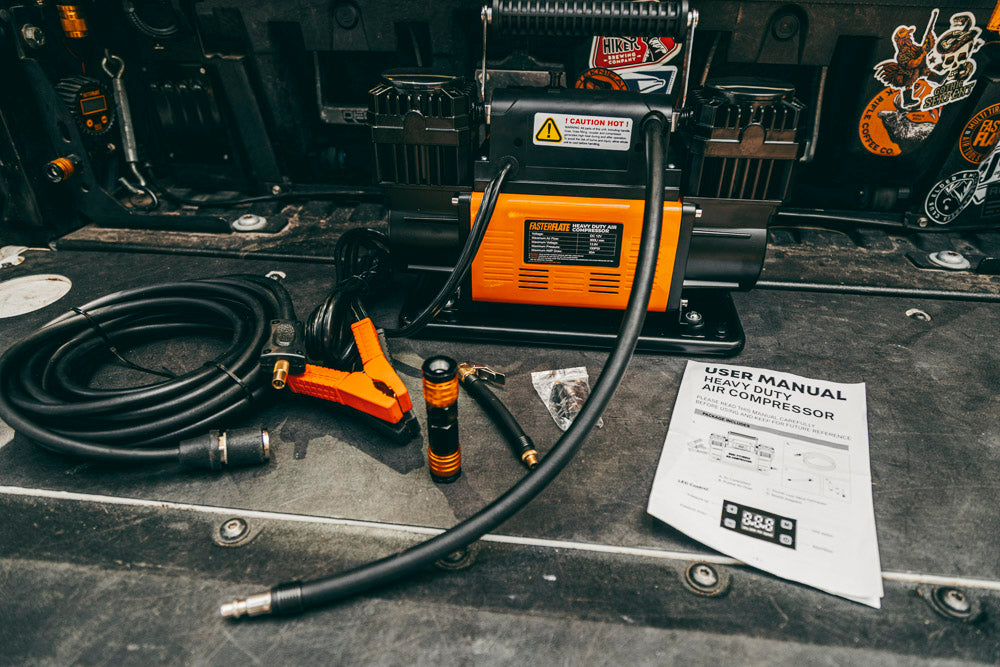

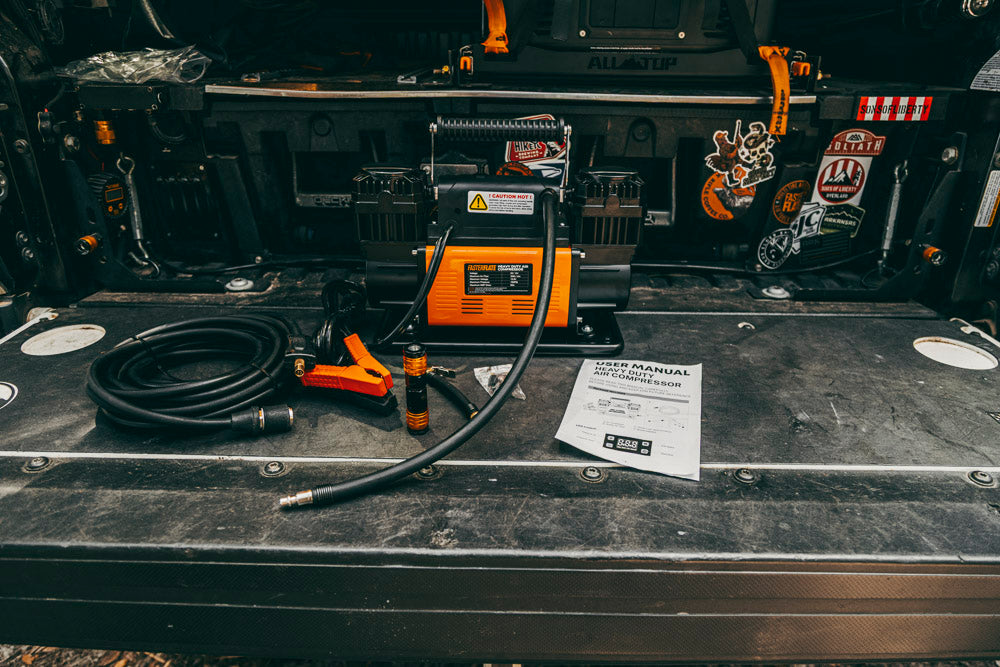

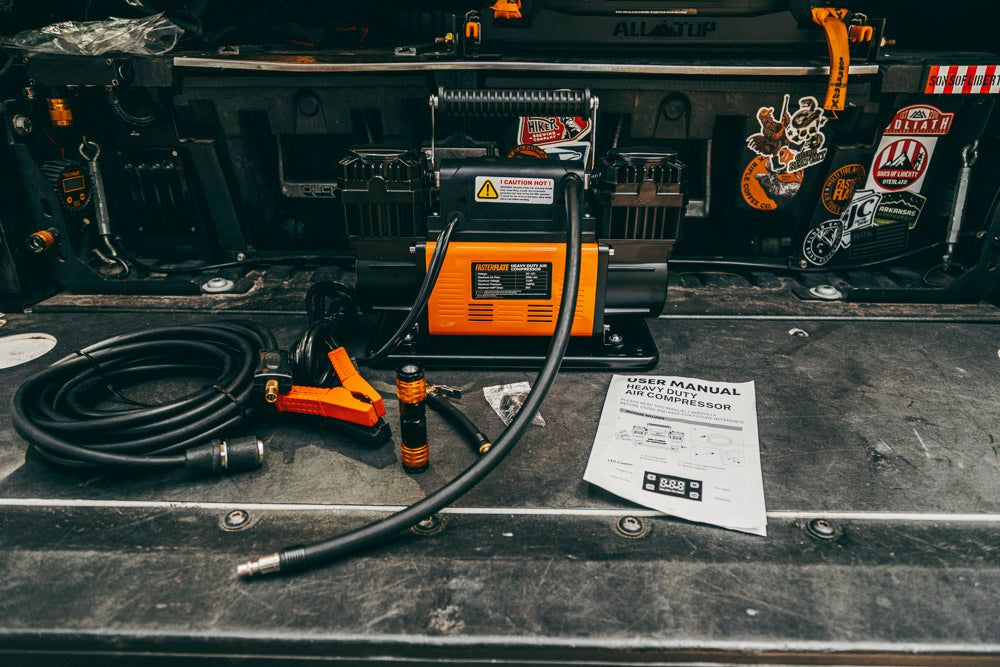

What’s Included

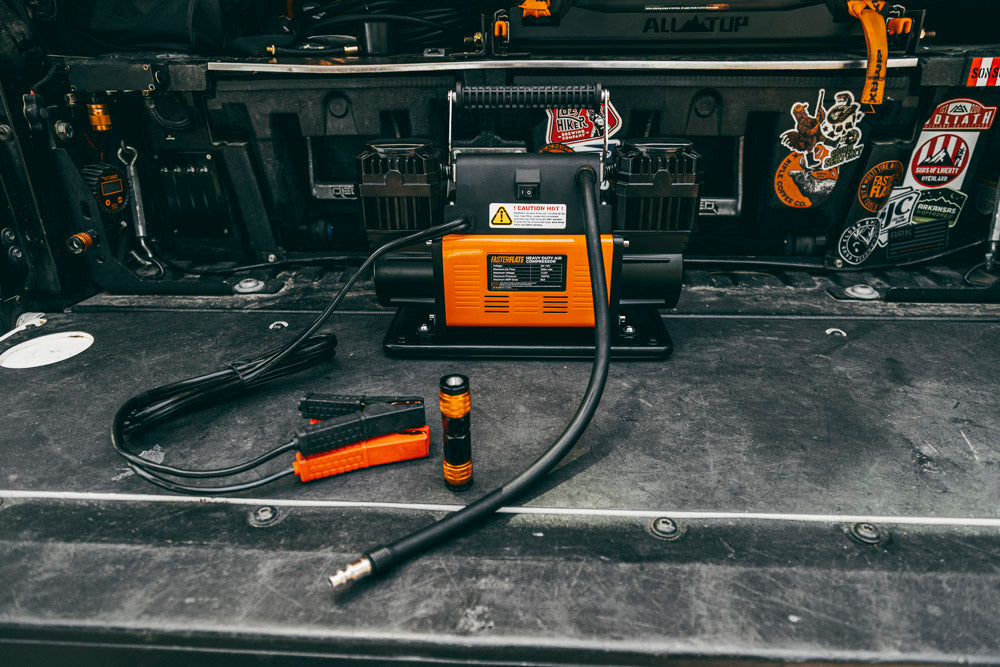

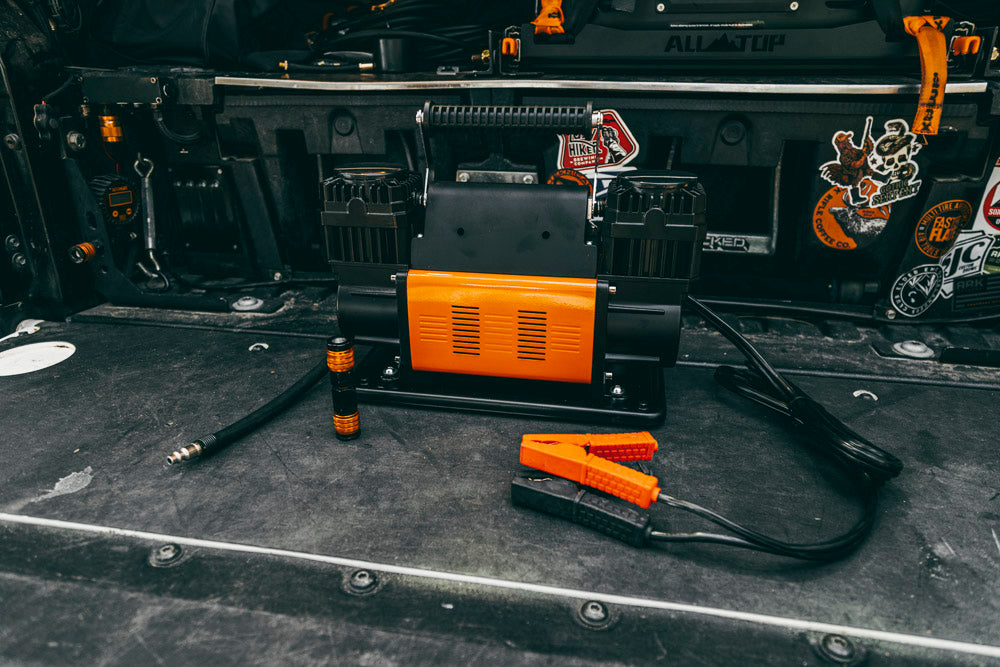

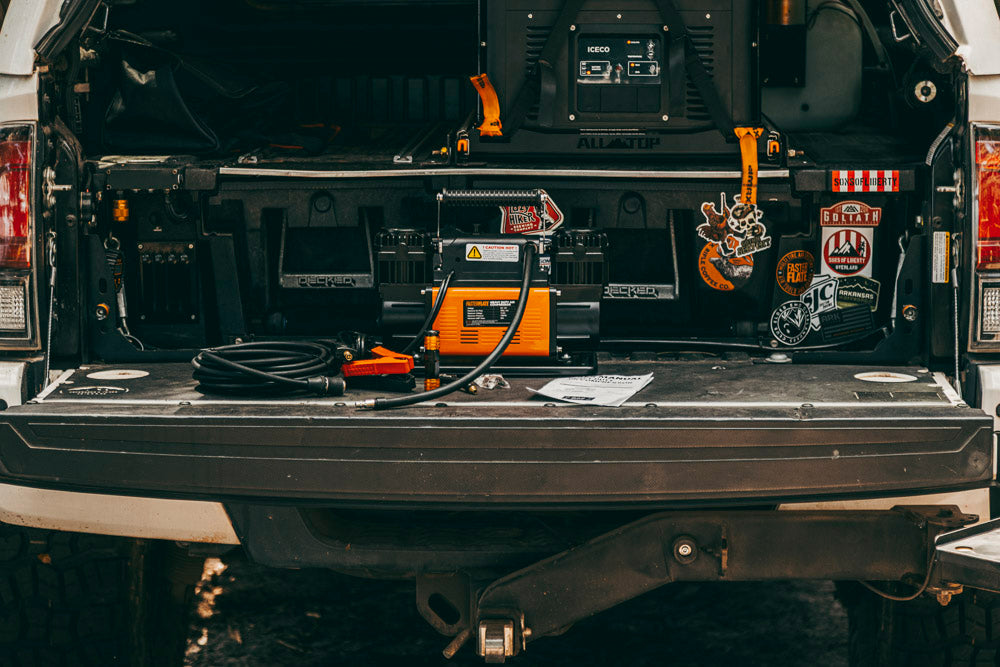

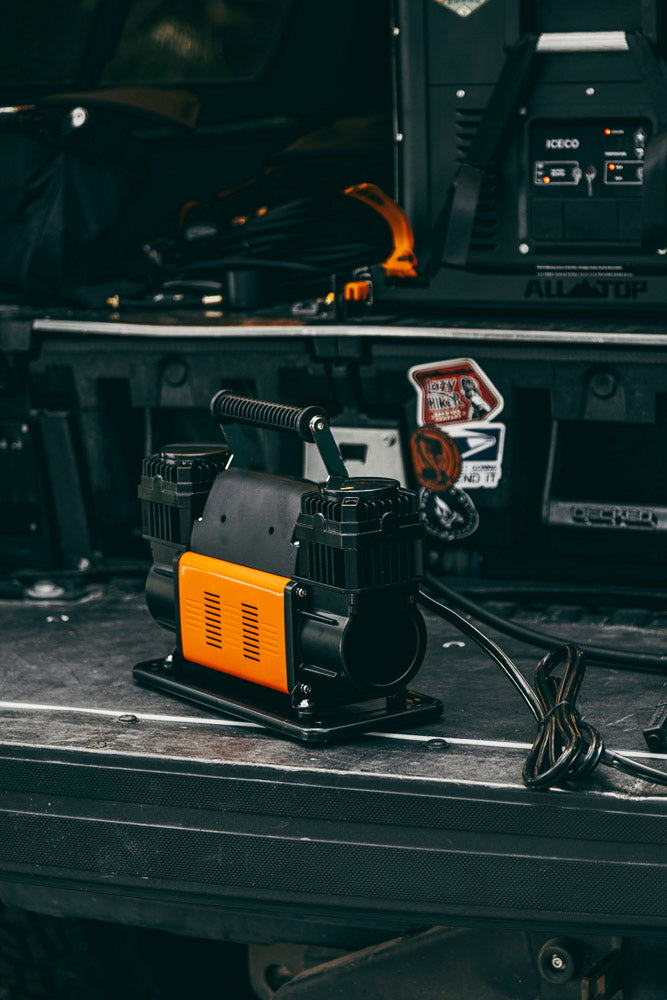

Dual-Cylinder 12V Compressor

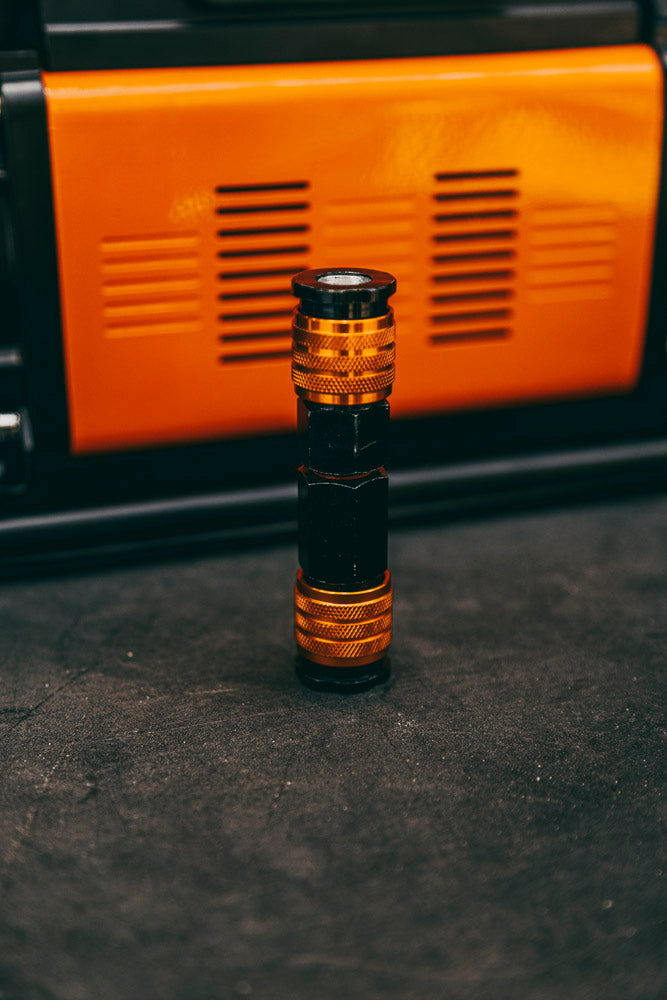

FREE Female-to-Female Universal Adapter

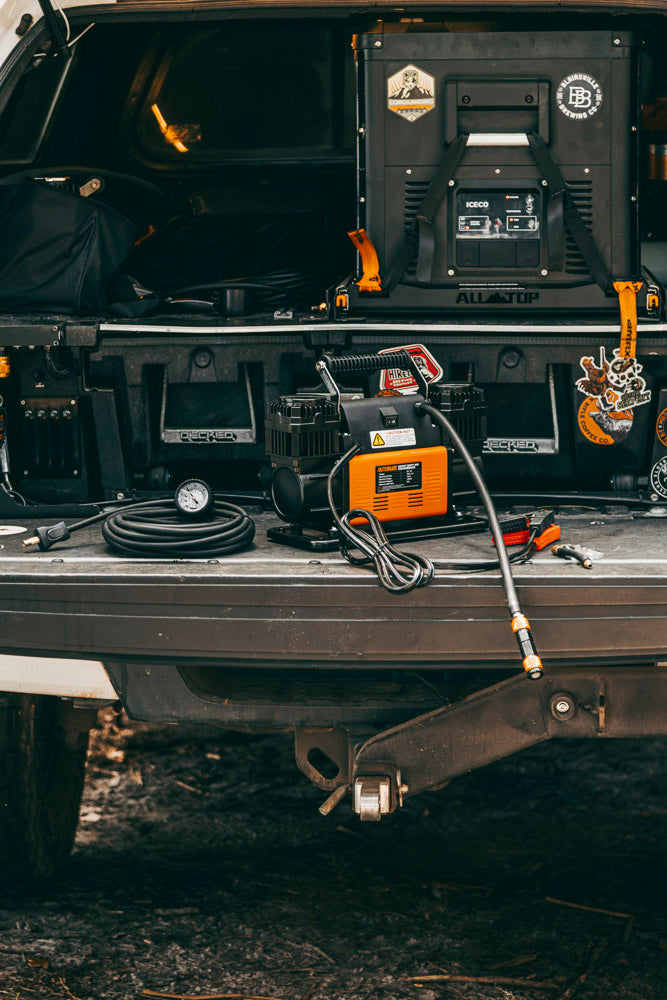

23ft Single Tire Inflation Hose with Inline Gauge

3 Valve Adapters for camp gear (mattresses, inflatables, etc.)

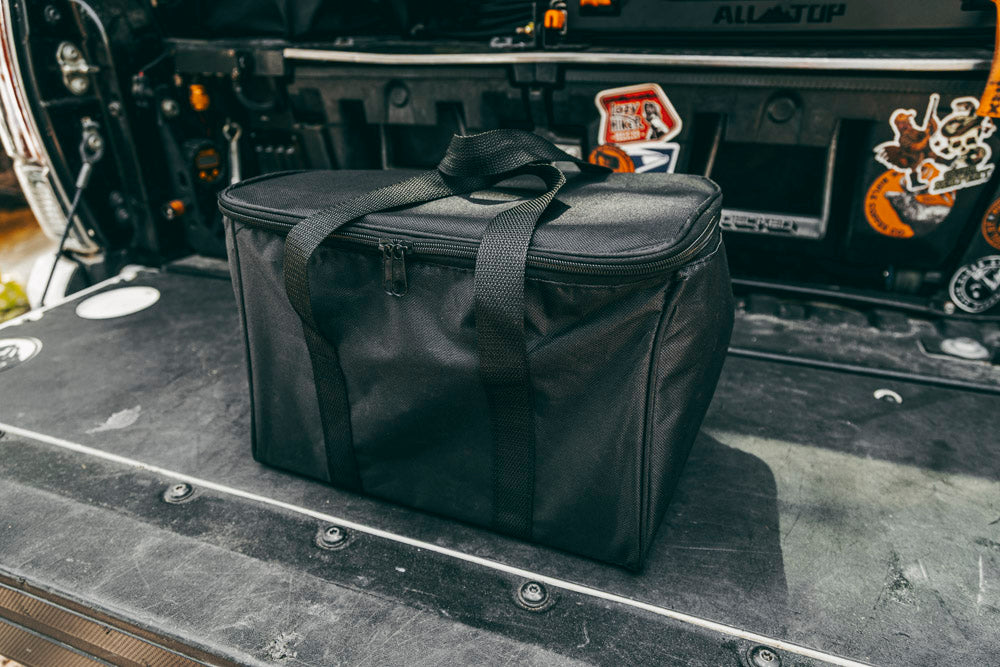

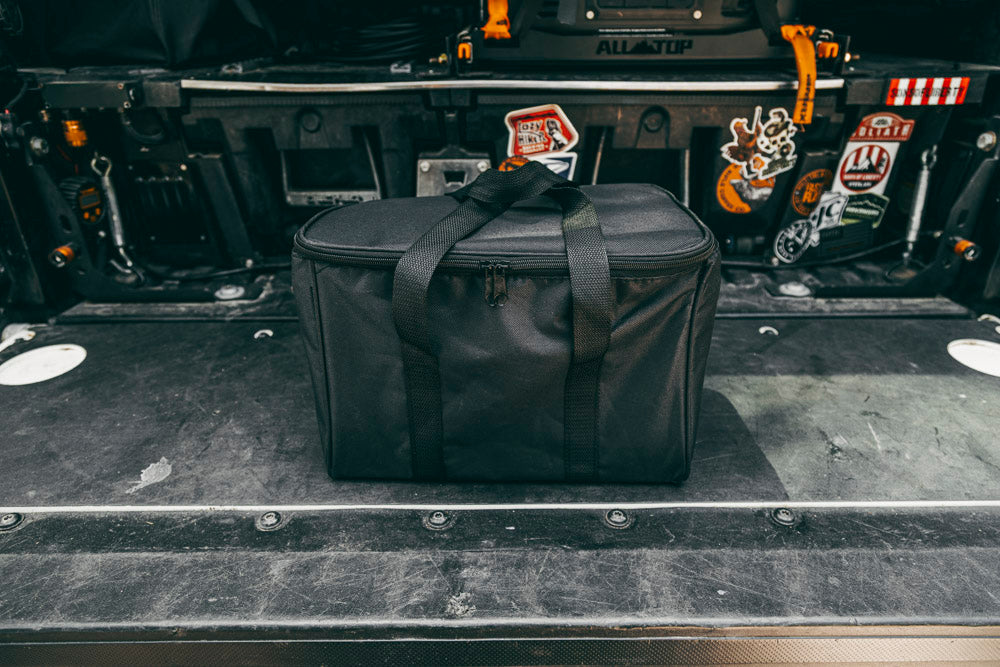

Carry Bag

⚠️ IMPORTANT: Caution & Duty Cycle

High-performance air compression generates significant heat. Please adhere to the following safety guidelines:

Pressure Safety: This compressor does not have a pressure shut-off safety switch. It will continue to run as long as it has power; please operate mindfully and monitor your pressures closely during use.

Duty Cycle: This unit is rated for a 25-minute duty cycle at 40 PSI (tested at 72°F). Always allow the unit to cool completely before restarting.

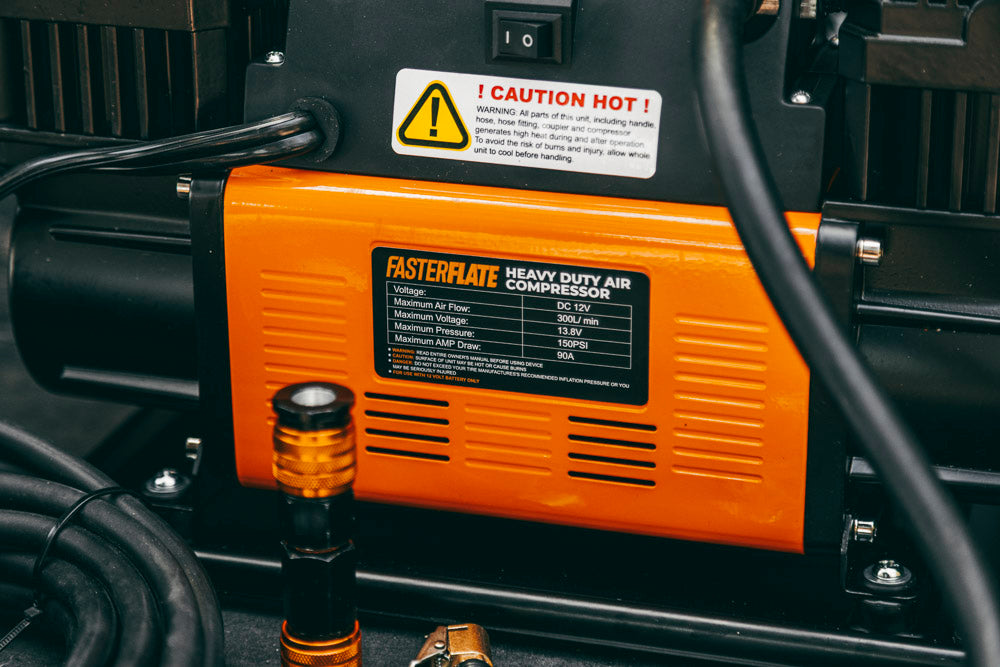

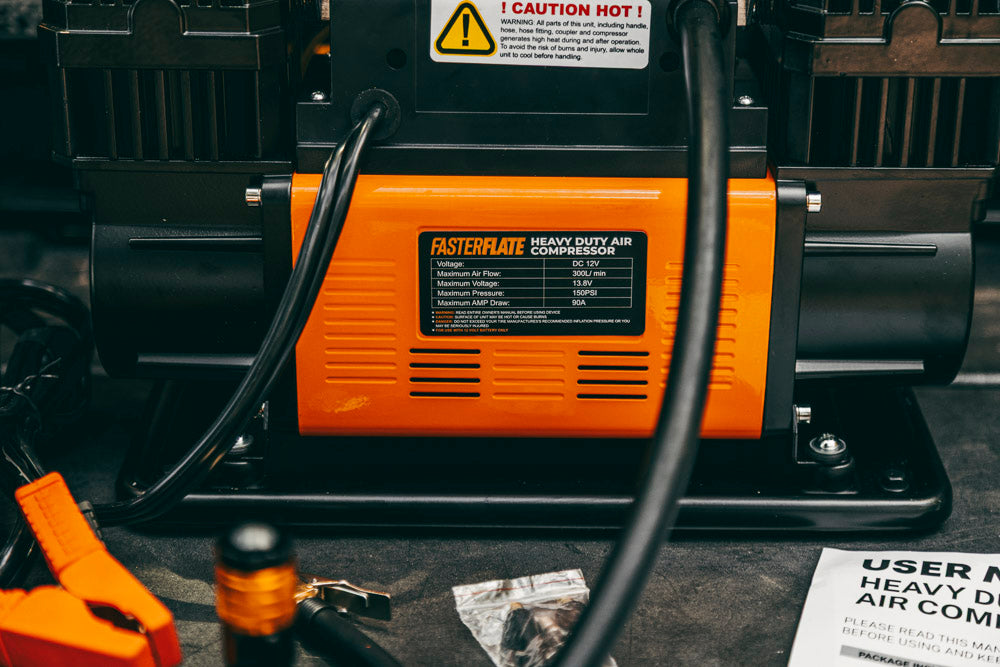

Heat Warning: The manifold and fittings become extremely hot during operation. Always use caution and wear gloves when disconnecting hoses.

Multi-Rig Use: Exercise extreme caution when airing up multiple rigs back-to-back. High ambient temperatures will shorten the effective duty cycle. Monitor heat levels closely to prevent internal seal damage.
